Mimaki CJV200-160 64" Inkjet Printer/Cutter
Overview
64" Print & Cut for Wide-Format Signage & Wall Graphics
The Mimaki CJV200-160 is the 64" model in Mimaki's CJV200 print-and-cut line — the widest in the series, sized for full-width vehicle graphics, wall murals, and large display work. It prints and contour cuts on one machine, so oversized jobs never leave the device between steps.
Eco-solvent inks give you indoor and outdoor durability across a wide media range, RasterLink 7 handles the print-and-cut workflow, and Mimaki's warranty covers the printhead for a full three years — unusual coverage on a machine at this price.
Key Features
- Integrated print and cut – Print and contour cut on one device, with no media transfer between steps
- 63.4" (1,610 mm) print width – Handles media up to 63.8" (1,620 mm) wide
- Eco-solvent ink options – SS22 and SS21 in up to 8 colors including Orange and light inks, or 4-color BS4
- 3M™ MCS™ Warranty eligible – Finished-graphic coverage when paired with approved 3M components
- Three years of printhead coverage – Year one Mimaki Total Care with labor, years two and three Parts Plus+
- RasterLink 7 RIP included – Print-and-cut workflow with bar-code-based ID Cut finishing
- Nozzle Check Unit and Recovery System – Detects blocked nozzles and substitutes healthy ones mid-run
- Continuous Mark Detect – Reads registration marks throughout the job for accurate contour cutting on long runs
- Half Cut, Over Cut, and Zero Margin Mark – Cutting controls for easier weeding and reduced media waste
- Bulk ink and uninterrupted supply – Optional bulk system with automatic switchover for unattended runs
Ink Options & Media Range
The CJV200-160 runs three eco-solvent ink sets. SS22 and SS21 offer up to eight colors — Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and Orange — where light inks smooth gradations and Orange extends the gamut for brand-color matching. BS4 is a straightforward four-color set for cost-sensitive production. All three qualify the machine for the 3M MCS Warranty, which covers the finished graphic rather than just the printer.
Built-In Reliability
- Waveform Control – Tunes droplet formation for cleaner dots and more consistent density
- Mimaki Advanced Pass System – Softens swath boundaries to suppress banding
- Mimaki Intelligent Heaters – Manage drying across the media path for reliable adhesion
- Mimaki Circulation Technology – Keeps ink moving to prevent settling and nozzle blockage
- Mimaki Fine Diffusion – Distributes dots to reduce visible patterning in solids and gradients

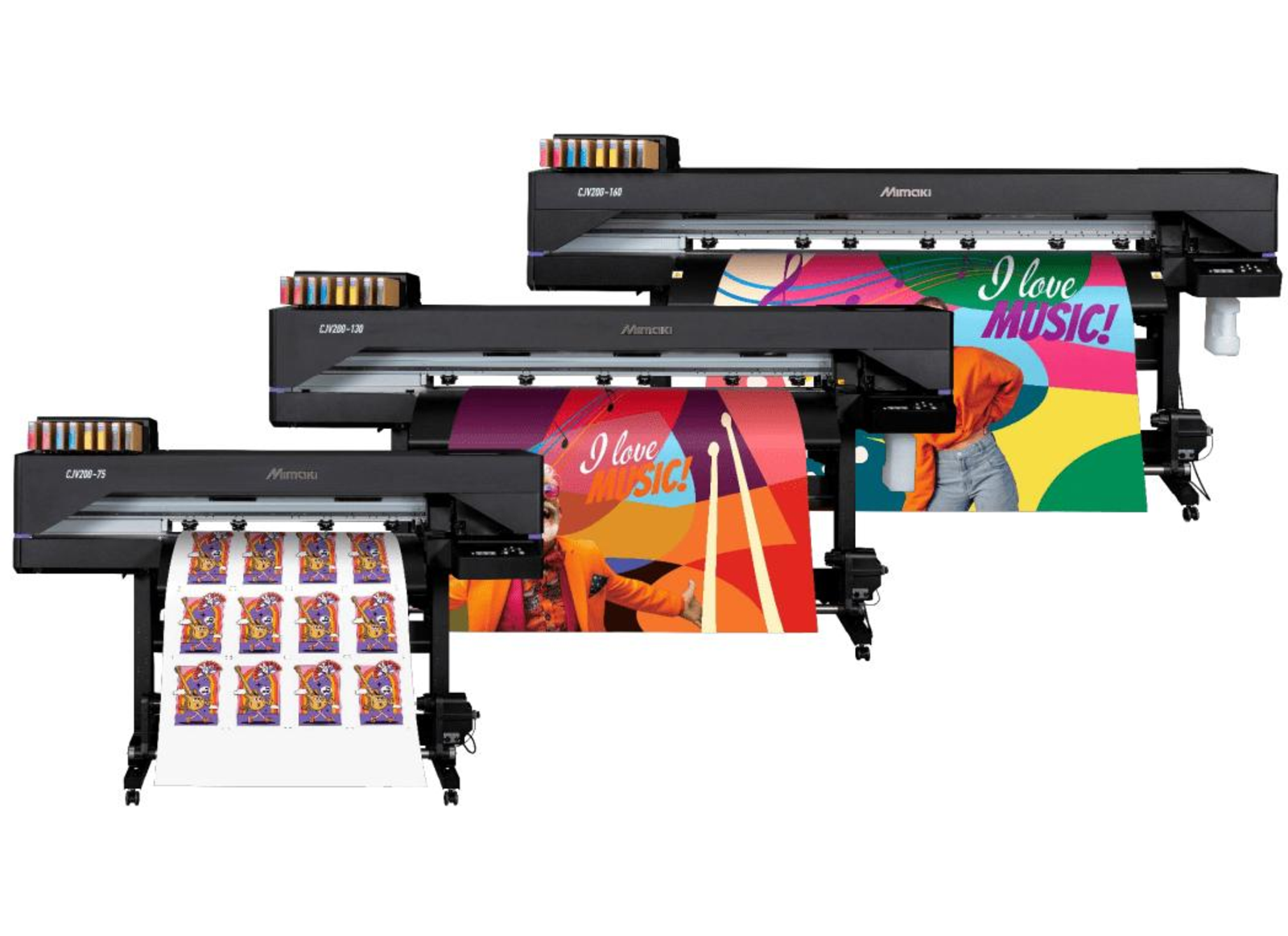

CJV200 Series Comparison
| Model | Class | Max Print Width | Max Media Width | Weight |
|---|---|---|---|---|
| CJV200-75 | 30" | 31.5" (800 mm) | 31.9" (810 mm) | 231.4 lbs (105 kg) |
| CJV200-130 | 54" | 53.6" (1,361 mm) | 53.9" (1,371 mm) | 286.6 lbs (130 kg) |
| CJV200-160 | 64" | 63.4" (1,610 mm) | 63.8" (1,620 mm) | 308.6 lbs (140 kg) |
Applications
Ideal for decals and die-cut labels, vehicle graphics and fleet markings, indoor and outdoor signage, exhibition and retail graphics, backlit displays, door tags and point-of-sale pieces, wall graphics, and stickers — anywhere printing and contour cutting need to happen on one machine.
Why Choose the Mimaki CJV200-160?
The CJV200-160 gives you the full 63.4" print width for jobs that can't be tiled — full vehicle panels, wall murals, wide banners — while keeping the integrated cutter, RasterLink 7 software, and three-year printhead coverage that run through the whole CJV200 line.
Specifications
| Specification | CJV200-160 |
|---|---|
| Printhead | One on-demand piezo printhead |
| Print Resolution | X: 600 / 1200 dpi | Y: 600 / 900 / 1200 dpi |
| Print Speed (4-color) | 183 sqft/hr (17 sqm/hr) |
| Max Print Area | 63.4" (1,610 mm) |
| Max Media Width | 63.8" (1,620 mm) |
| Max Media Thickness | Up to 0.04" (1 mm) |
| Max Media Weight | 55 lbs (25 kg) |
| Ink Type | Eco-solvent: SS22 and SS21 (C, M, Y, K, Lc, Lm, Lk, Or); BS4 (C, M, Y, K) |
| Interface | USB 2.0 Hi-Speed; Ethernet 1000BASE-T |
| Power Supply | AC 100–120V / 200–240V ±10% × two, 50/60Hz |
| Power Consumption | Max 1,320W × 2; sleep mode 4.5W |
| Operating Environment | 68–86°F (20–30°C); 35–65% RH non-condensing |
| Dimensions (W × D × H) | 109" W x 29.5" D x 54" H |
| Weight | 308.6 lbs (140 kg) |
| Included Software | RasterLink 7 RIP |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking, CB, REACH, Energy Star, RCM, EAC, KC, UKCA |
| Warranty | Year one Mimaki Total Care including labor; years two and three Mimaki Parts Plus+ on non-consumable parts; printheads covered all three years |
