Mimaki CJV200-130 54" Inkjet Printer/Cutter

54" Print & Cut for Signage, Decals & Vehicle Graphics

The Mimaki CJV200-130 is the 54" model in Mimaki's CJV200 print-and-cut line — the middle width, and the most common choice for sign shops running a mix of decals, labels, and vehicle graphics. It prints and contour cuts on a single device, eliminating the handoff between printer and cutter.

Eco-solvent inks give you indoor and outdoor durability across a wide media range, RasterLink 7 handles the print-and-cut workflow, and Mimaki's warranty covers the printhead for a full three years — unusual coverage on a machine at this price.

Key Features

• Integrated print and cut – Print and contour cut on one device, with no media transfer between steps
• 53.6" (1,361 mm) print width – Handles media up to 53.9" (1,371 mm) wide
• Eco-solvent ink options – SS22 and SS21 in up to 8 colors including Orange and light inks, or 4-color BS4
• 3M™ MCS™ Warranty eligible – Finished-graphic coverage when paired with approved 3M components
• Three years of printhead coverage – Year one Mimaki Total Care with labor, years two and three Parts Plus+
• RasterLink 7 RIP included – Print-and-cut workflow with bar-code-based ID Cut finishing
• Nozzle Check Unit and Recovery System – Detects blocked nozzles and substitutes healthy ones mid-run
• Continuous Mark Detect – Reads registration marks throughout the job for accurate contour cutting on long runs
• Half Cut, Over Cut, and Zero Margin Mark – Cutting controls for easier weeding and reduced media waste
• Bulk ink and uninterrupted supply – Optional bulk system with automatic switchover for unattended runs

Ink Options & Media Range

The CJV200-130 runs three eco-solvent ink sets. SS22 and SS21 offer up to eight colors — Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and Orange — where light inks smooth gradations and Orange extends the gamut for brand-color matching. BS4 is a straightforward four-color set for cost-sensitive production. All three qualify the machine for the 3M MCS Warranty, which covers the finished graphic rather than just the printer.

Built-In Reliability

• Waveform Control – Tunes droplet formation for cleaner dots and more consistent density
• Mimaki Advanced Pass System – Softens swath boundaries to suppress banding
• Mimaki Intelligent Heaters – Manage drying across the media path for reliable adhesion
• Mimaki Circulation Technology – Keeps ink moving to prevent settling and nozzle blockage
• Mimaki Fine Diffusion – Distributes dots to reduce visible patterning in solids and gradients

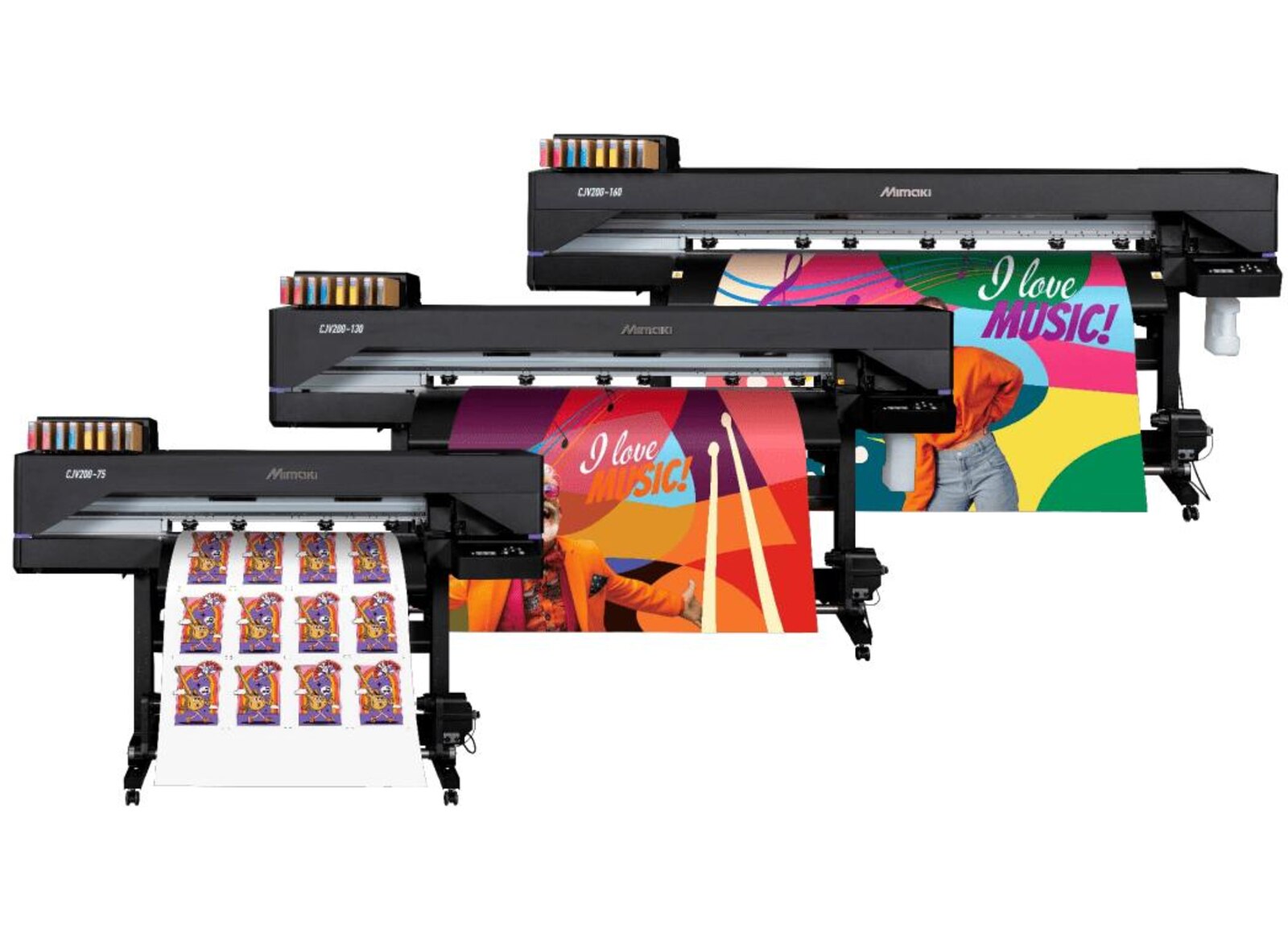

CJV200 Series Comparison

Applications

Ideal for decals and die-cut labels, vehicle graphics and fleet markings, indoor and outdoor signage, exhibition and retail graphics, backlit displays, door tags and point-of-sale pieces, wall graphics, and stickers — anywhere printing and contour cutting need to happen on one machine.

Why Choose the Mimaki CJV200-130?

The CJV200-130 hits the practical middle of the series — wide enough for most vehicle and signage work, compact enough to sit in a standard shop bay. With RasterLink 7 included, 3M MCS warranty eligibility, and three years of printhead coverage, it's a complete sign-production package rather than a printer you still have to build around.
