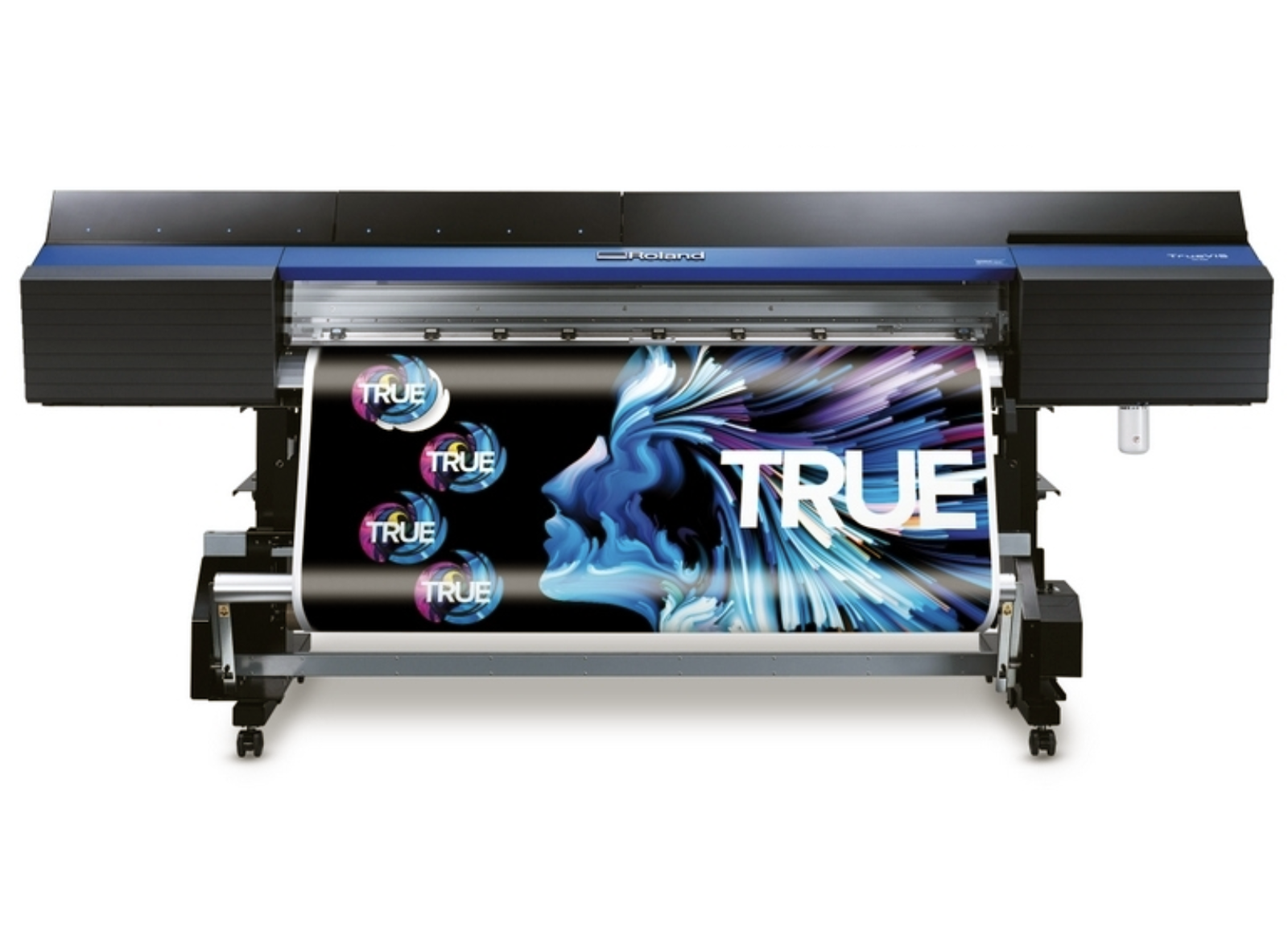

Roland TrueVIS VG4-640 64" Eco-Solvent Printer/Cutter
Overview
Premium 64" Print & Cut with Expanded TR3 Color
The Roland TrueVIS VG4-640 is a 64" eco-solvent printer/cutter built for sign shops and wrap professionals who need width, color, and dependable daily production. As the next generation of the TrueVIS line, it pairs a new printhead with Roland's latest TR3 inks to deliver premium graphics with integrated contour cutting.
The headline is color: the expanded TR3 ink set adds Red, Orange, Green, and Light Black for up to 97% Pantone coverage — the difference between matching a brand color and approximating it.
Key Features
- Integrated print & cut – Print and contour cut in one device with an included media take-up system
- Expanded TR3 ink set – Red, Orange, Green, and Light Black for up to 97% Pantone coverage
- New printhead technology – Refined droplet control for sharper detail and smoother gradients
- Up to 1,800 dpi – High-resolution output for close-viewing graphics and fine text
- Flexible ink configurations – Dual CMYK for speed, or expanded gamut up to eight colors
- Lower ink consumption – Up to 35% less ink than previous VG models, reducing cost per print
- Improved take-up control – Stable media handling for long, unattended production runs
- 7-inch touchscreen – Direct Print lets operators start jobs at the machine after RIP setup
- VersaWorks 7 and DG Connect – Professional RIP plus cloud monitoring, no subscription cost
Expanded Gamut, Accurate Brand Color
Color accuracy is where the VG4 earns its place. The TR3 ink set extends well beyond CMYK — Red, Orange, and Green reach the vivid, saturated tones that four-color output struggles with, while Light Black smooths gradients and neutral grays. Up to 97% Pantone coverage means the corporate reds, oranges, and blues that clients demand come out right the first time, with accurate spot-to-process conversion built into VersaWorks 7.
Built for Production Efficiency
- Up to 35% less ink – Lower running cost on every job versus previous VG models
- Perforation sheet cut – Easier handling and separation on long runs
- Improved take-up – Consistent tension for reliable unattended printing and cutting
- Easier self-maintenance – Less downtime and simpler daily upkeep
- Direct Print – Start queued jobs from the touchscreen without returning to the workstation
- Roland DG Connect – Remote monitoring of status, ink, and production data
Applications
Ideal for full and partial vehicle wraps, fleet graphics, banners and backlit signage, decals and labels, window and floor graphics, retail and point-of-sale displays, wall murals, and heat-transfer graphics — wherever brand-accurate color and integrated cutting matter.
Why Choose the Roland TrueVIS VG4-640?
The VG4-640 is the color-critical choice in Roland's 64" print-and-cut line. Expanded TR3 gamut, a new printhead, and lower ink consumption make it the machine for shops where brand-accurate color and running cost both matter — wraps, retail signage, and premium graphics produced day after day.
Specifications
| Specification | VG4-640 |
|---|---|
| Device Type | Eco-solvent printer/cutter (integrated print & cut) |
| Max Media Width | 64" (1,625 mm) |
| Max Print/Cut Width | 62.9" (1,600 mm) |
| Ink Type | Roland TR3 eco-solvent |
| Ink Configurations | Dual CMYK; expanded gamut up to 8 colors (Orange, Green, Red, Light Black, White options) |
| Pantone Coverage | Up to 97% |
| Max Print Resolution | Up to 1,800 dpi |
| Print & Cut | Integrated contour cutting; included media take-up system |
| Control | 7-inch color touchscreen with Direct Print |
| Included Software | VersaWorks 7 RIP; Roland DG Connect |
| Warranty | One-year limited |
