Roland EU-1000MF 4x8' UV Flatbed Printer with 4-Colors
Overview
High-Volume 4'x8' Direct-to-Board UV Flatbed

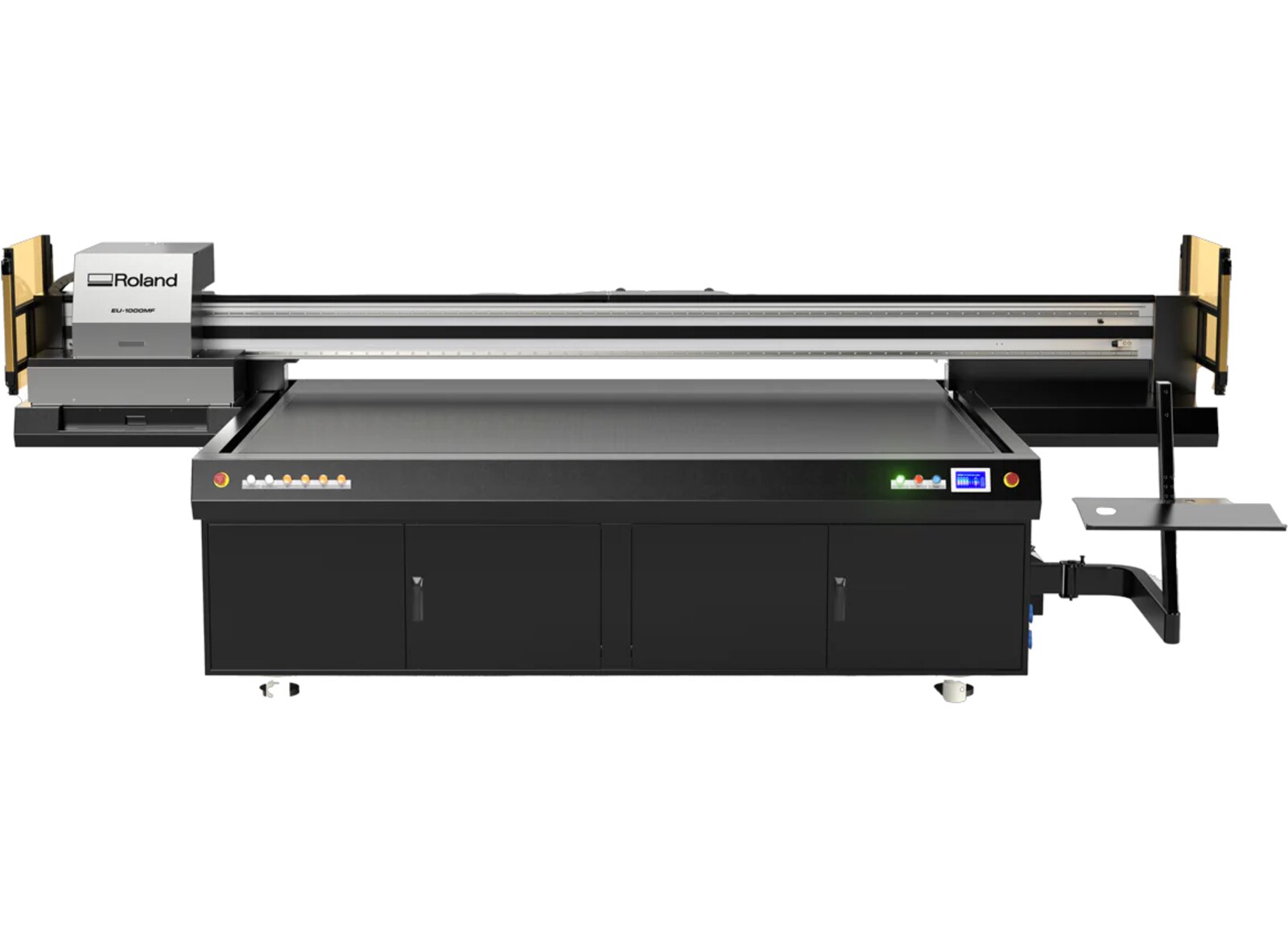

The Roland EU-1000MF-4C is a high-volume UV-LED flatbed printer that prints directly onto rigid and flexible boards up to 96" x 48" and 3.74" thick. This is the four-color (CMYK) configuration, running four printheads for fast, cost-efficient full-color production.
Built around Roland's GREENGUARD Gold certified E-US UV inks — high-density, high-adhesion, and lower-cost than typical large-format UV inks — it prints vivid graphics on PETG, PVC board, foam board, wood, corrugated board, and aluminum plate, cured instantly by a liquid-cooled LED lamp system.

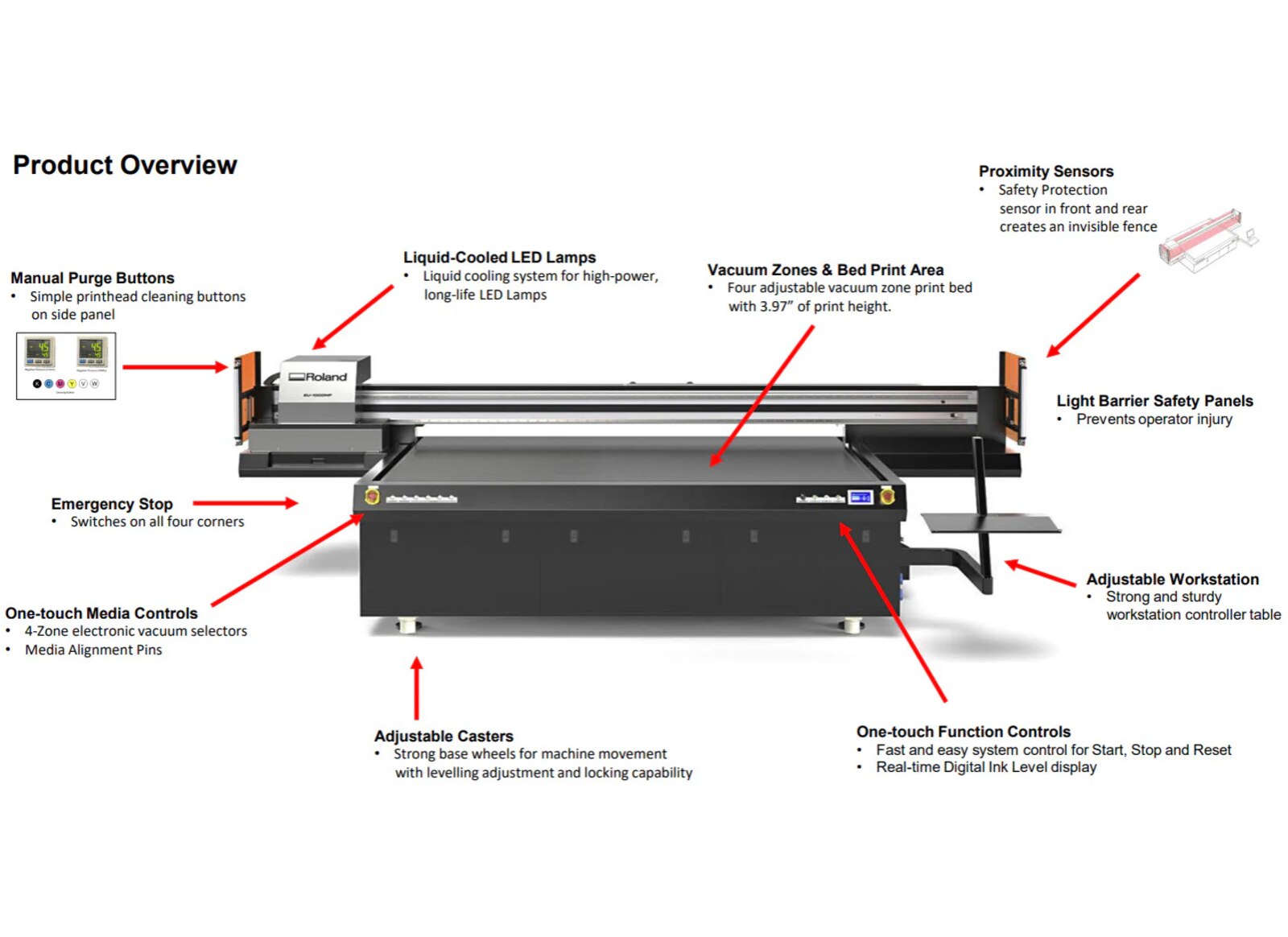

Key Features
- 96" x 48" print area – Full 4'x8' boards in one piece, up to 3.74" thick
- Four-color (CMYK) ink – a streamlined four-color engine for maximum-value, high-volume CMYK production
- E-US UV inks – GREENGUARD Gold certified, high-density, high-adhesion, low-cost, 1-liter bottles
- Four-zone electronic vacuum bed – Automatic suction and support for media stability
- Media alignment pins – Pop-up pins for automatic alignment to the origin point
- Liquid-cooled LED lamp system – Longer lamp life and faster curing
- Print head protection system – Detects media collision to protect the heads
- Two print modes – Standard or high quality to suit media and production needs
- Side table control station – Convenient machine management from the bed side
Direct-to-Board Production
The EU-1000MF-4C is engineered for volume. It prints up to nine 4'x8' boards per hour in CMYK in standard mode — straight onto rigid stock with no transfer. The four-zone vacuum bed and pop-up alignment pins make board loading fast and repeatable, while the liquid-cooled LED system cures each pass instantly for immediate handling. For a shop producing signage, displays, and interior panels at scale, it turns board printing into a high-throughput line.
Production-Grade Reliability
- Instant UV-LED curing – Boards come off dry and ready to finish or ship
- Low-cost E-US ink – High density at a lower cost than typical large-format UV ink
- Four-zone vacuum – Holds warp-prone and varied board stock flat
- Collision protection – Head-protection system guards against media strikes
- VersaWorks RIP – Bundled Roland RIP with Pantone libraries and production tools
- One-year warranty – On-site coverage with registration and Roland ink use
EU-1000MF Configuration Comparison
| Model | Ink Configuration | Printheads | Speed (standard) |
|---|---|---|---|
| EU-1000MF-4C | CMYK | Four printheads | Up to 9 boards/hr (CMYK) |
| EU-1000MF-6C | CMYK + White + Gloss | Six printheads | 4 boards/hr (CMYK+Wh) |
Applications
Ideal for rigid signage and display boards, POP and retail displays, interior décor panels, event and exhibition graphics, specialty products, and direct printing on PETG, PVC board, foam board, wood, corrugated board, and aluminum.
Why Choose the Roland EU-1000MF-4C?
The 4-color EU-1000MF is the maximum-value configuration of Roland's high-volume board flatbed, built for shops whose work is fast, full-color CMYK production at the lowest cost per board. Either way you get 4'x8' capacity, instant UV curing, and low-cost E-US ink built for production.
Specifications
| Specification | EU-1000MF-4C |
|---|---|
| Device Type | High-volume UV-LED flatbed printer (direct-to-board) |
| Max Media Size | 96" x 48" (4' x 8') |
| Max Media Height | 3.74" |
| Ink Configuration | CMYK (4-color) |
| Printheads | Four |
| Ink Type | Roland E-US UV, GREENGUARD Gold, 1-liter bottles |
| Print Speed (standard) | Up to 9 4'x8' boards/hr (CMYK) |
| Print Modes | Standard or high quality |
| Media Hold-Down | Four-zone electronic vacuum bed with pop-up alignment pins |
| Curing | Liquid-cooled UV-LED lamp system |
| Substrates | PETG, PVC board, foam board, wood, corrugated board, aluminum, and more |
| Included Software | VersaWorks RIP |
| Warranty | One-year on-site (with registration and Roland ink use) |
