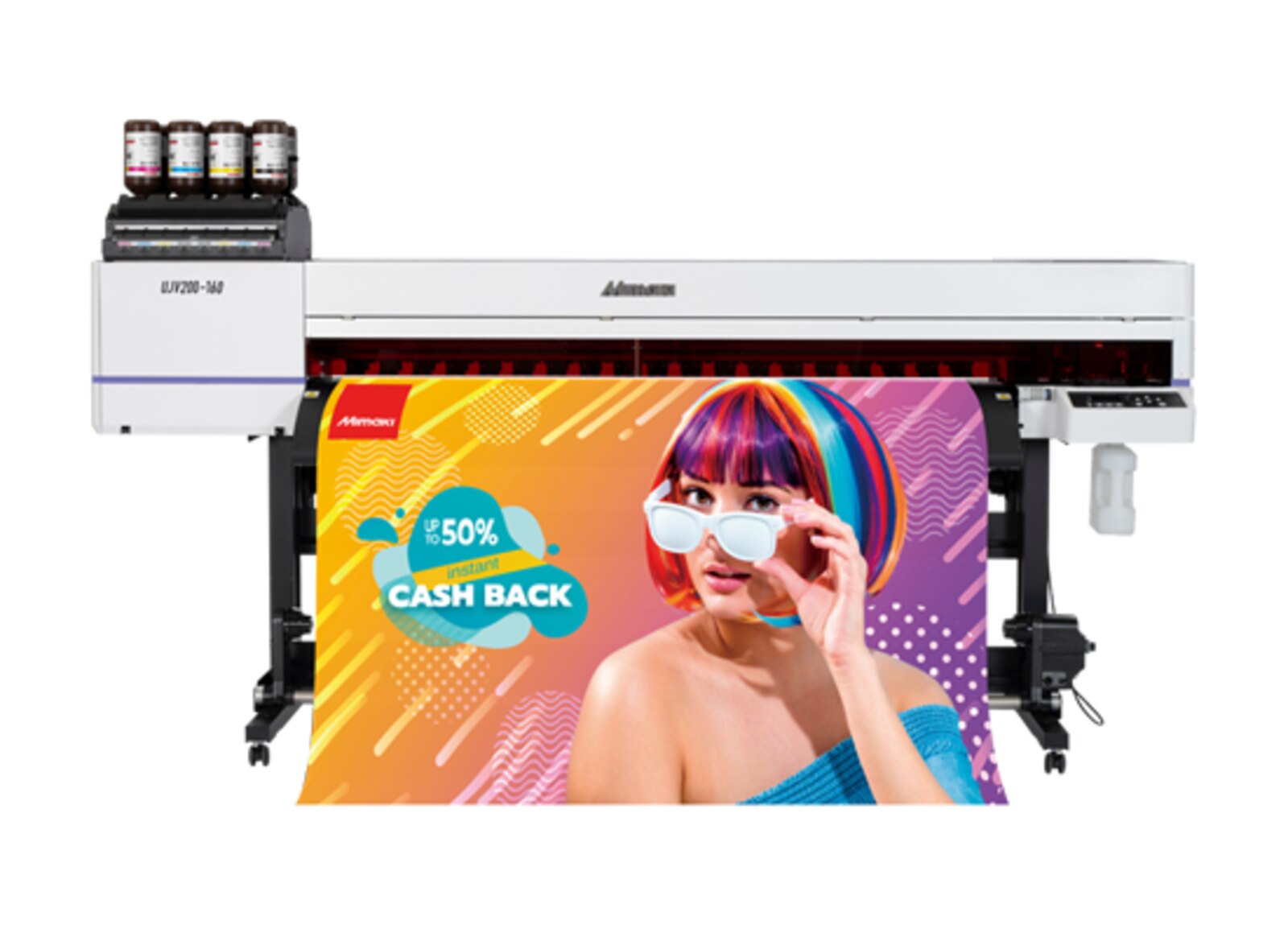

Mimaki UJV200-160 64" UV LED Roll Inkjet Printer

64" UV-LED Roll Printing on the 330 Engine

The Mimaki UJV200-160 is a 64" UV-LED roll-to-roll printer built on Mimaki's 330 Engine printhead — the same technology behind the flagship line, in a simpler single-head platform that new operators can run confidently.

Resolutions to 1,200 dpi give smooth gradients and clean small text with minimal graininess. Low-temperature UV-LED curing means the machine prints on heat-sensitive and transparent materials that solvent printers can distort, and every print cures on the platen — ready for lamination, cutting, or installation the moment it comes off.

Key Features

• 330 Engine printhead – Flagship-derived single head delivering smooth gradients and sharp detail
• Resolutions to 1,200 dpi – Fine text and photographic quality for close-viewing graphics
• 64" print width – 1,610 mm maximum, sized for full-width signage and window work
• White and clear inks – Up to three-layer printing for backlit, dark-media, and specialty effects
• ELS-170, ELS-175, and LUS-210 inks – Multiple UV-curable options to match the application
• Instant UV-LED curing – Prints finish on the platen with no drying or outgassing delay
• Low-temperature curing – Runs heat-sensitive films and transparent media safely
• Variable Dot Technology – Droplet size varies by image content for detail without graininess
• Mimaki Advanced Pass System – Blends swath boundaries to suppress banding across large flat areas
• Automated quality adjustment – Dot position and feed correction handled by the machine, not the operator

Flagship Engine, Simpler Platform

The UJV200-160 borrows the printhead technology from Mimaki's 330 Series and puts it on a single-head chassis. The trade is deliberate: you give up the raw throughput of dual-head production machines and gain a printer that needs less cleaning, less adjustment, and less operator expertise. Image quality does not suffer — the same droplet control and pass blending that produce flagship output are doing the work here. For a shop stepping up from entry-level UV, or adding a second machine to absorb overflow, that combination is hard to beat.

UV Advantages

• Print on more substrates – UV ink needs no receptive coating, opening films and materials solvent can't hold
• No outgassing wait – Laminate, cut, or ship immediately rather than resting prints overnight
• Multi-layer capability – White and clear stacks for day-and-night graphics and premium finishes
• Low odor operation – No solvent evaporation, suitable for shops with limited ventilation
• Lower energy use – UV-LED curing draws considerably less power than heated solvent drying
• Durable output – UV-cured ink resists scratching and fading for indoor and outdoor installs

Applications

Ideal for sign graphics and banners, window and retail displays, backlit and day-and-night graphics, decals and labels, point-of-sale pieces, exhibition graphics, wall coverings, floor graphics, and short-run packaging prototypes.

Why Choose the Mimaki UJV200-160?

The UJV200-160 is the practical middle of Mimaki's UV roll line: flagship printhead technology, white and clear ink capability, and full 64" width, on a platform simple enough that training is measured in days rather than weeks. For commercial sign work that needs UV versatility without flagship complexity, it's the natural choice.
