Mimaki UJ330H 64" Hybrid Roll/Rigid UV Printer

Hybrid UV Printing — Roll and Rigid on One Machine

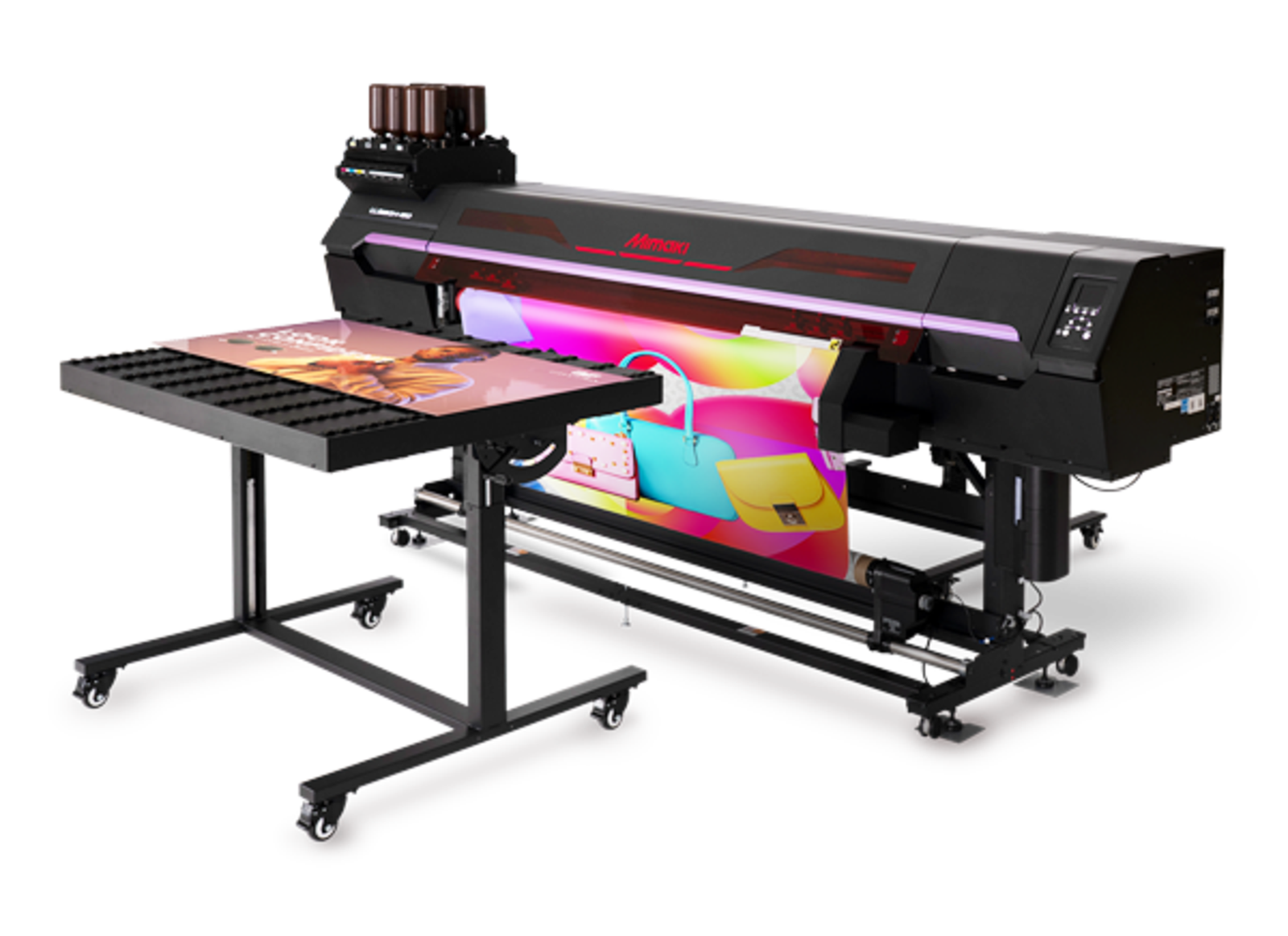

The Mimaki UJ330H-160 is a hybrid UV printer that handles roll media and rigid board on a single platform, switching between them in minutes. For shops that need flatbed capability but not flatbed floor space, it removes the choice between the two.

Built on Mimaki's 330 Series engine with dual printheads and resolutions to 1200 × 1800 dpi, it prints window graphics and vehicle wraps one hour and 4' x 11' aluminium composite signs the next. A vacuum transport belt replaces pinch rollers entirely, so even the thinnest films run through without marks, wrinkling, or sagging.

Key Features

• Roll and rigid in one machine – Switch between roll-to-roll and rigid board production in minutes, on one footprint
• 2" (50.8 mm) head clearance – Prints on thick rigid stock including aluminium composite and foam board
• Dual printheads, flexible color – Run 2x CMYK for speed, CMYK + Clear + White, or CMYK + Light Cyan/Light Magenta + White
• Resolutions to 1200 x 1800 dpi – Fine detail and smooth gradients from the proven 330 Series engine
• Up to 5-layer and 2.5D printing – Day-and-night graphics, backlit work, and raised tactile texture
• 3-Way transport system – Vacuum belt plus lock rollers hold both flexible and warp-prone rigid media stable
• No pinch rollers – Eliminates roller marks and enables clean output on thin window film and synthetic leather
• 1.6 kW maximum power – Roughly a third of a latex printer's draw and well under eco-solvent
• Heat-free UV curing – No warping or deformation on heat-sensitive substrates
• Full Mimaki core technology suite – NCU, NRS, DAS2, Variable Dot, MWDT, MAPS4, and PICT cloud monitoring

One Footprint, Two Production Modes

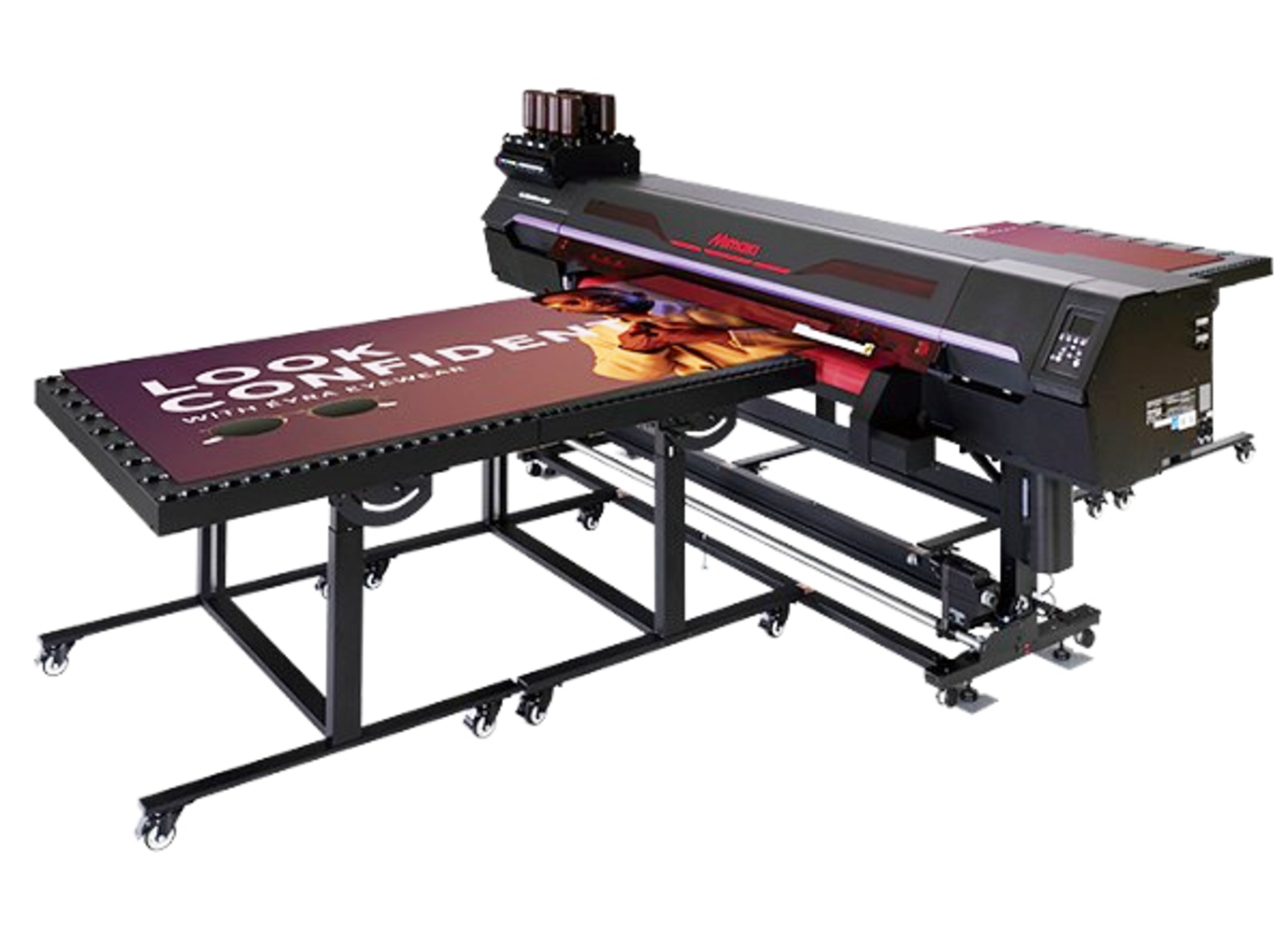

A traditional shop buys a roll printer, then buys a flatbed when rigid work arrives — two machines, two service contracts, and floor space most shops don't have. The UJ330H-160 collapses that into one. The vacuum transport belt feeds vinyl, tarpaulin, wallpaper, fabric, and thin window film without pinch-roller marks; lock rollers and vacuum hold-down then take rigid sheets up to 2" thick, including large panels prone to warping at the leading edge. Changeover is measured in minutes, so a mixed job queue doesn't mean a mixed equipment list.

Expanded Application Range

• Rigid substrate printing – Aluminium composite panels, foam board, acrylic, and rigid signage stock
• Challenging roll media – Thin window films, fabric, and synthetic leather that pinch rollers would damage
• Multi-layer output – Up to five layers for backlit, day-and-night, and premium finishing effects
• 2.5D texture printing – Build raised surfaces for decorative panels and tactile signage
• White and clear inks – Print on dark and transparent media, add spot gloss and dimensional effects
• Strong substrate adhesion – Mimaki UV inks give scratch resistance across demanding materials
• PICT cloud monitoring – Track printer status and production remotely from PC or mobile

Applications

Ideal for rigid signage and aluminium composite panels, window and vehicle graphics, backlit and day-and-night displays, wallpaper and interior décor, packaging prototypes, foam board displays and POP, fabric and soft signage, textured decorative panels, and specialty short-run work.

Why Choose the Mimaki UJ330H-160?

The UJ330H-160 is the answer for shops that keep turning down rigid work because a flatbed won't fit — physically or financially. It brings 330 Series image quality, five-layer capability, and 2" rigid clearance into a single machine that also runs roll production, at a third the power draw of a latex printer.
