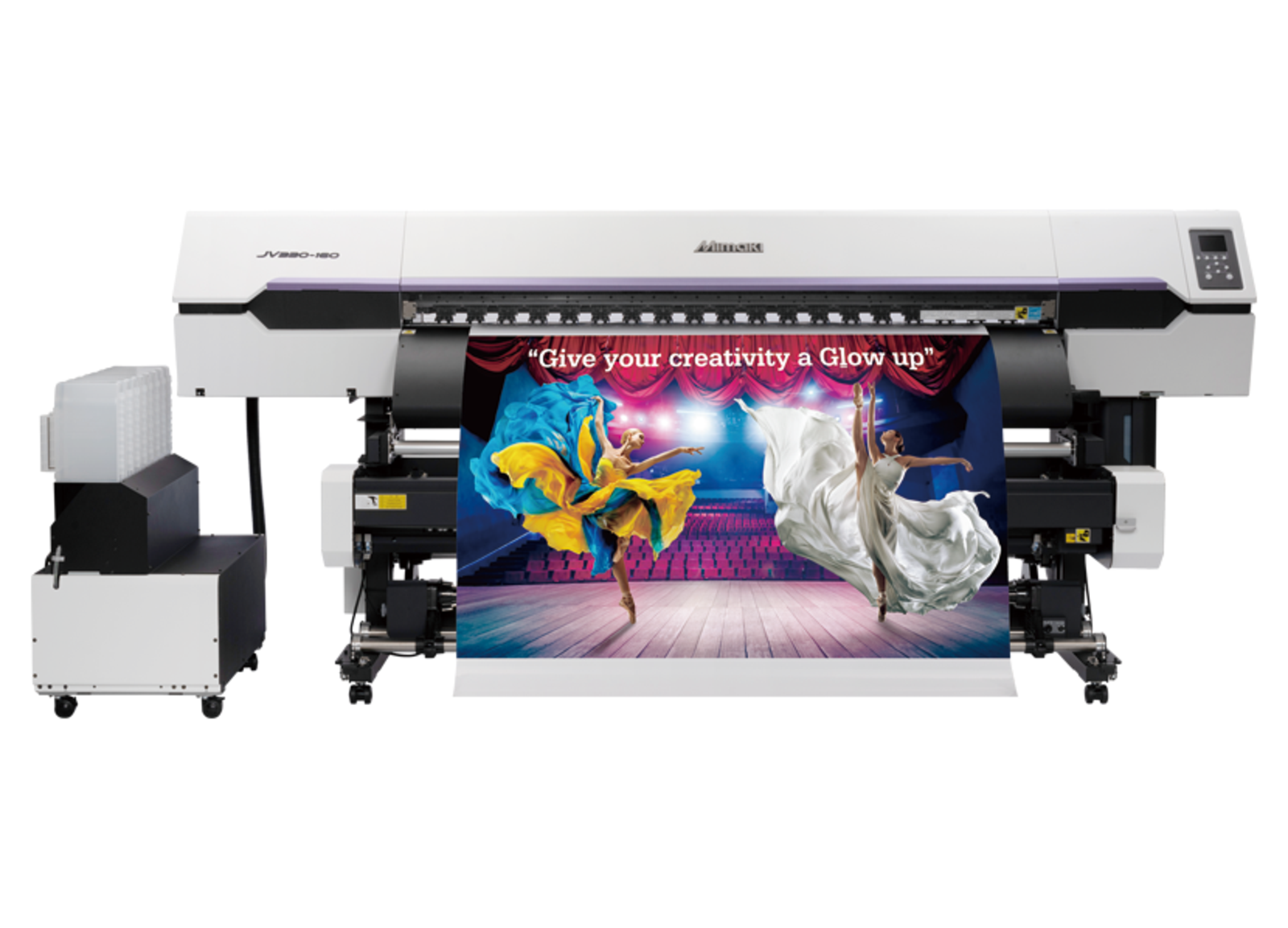

Mimaki JV330-160 64" EcoSolvent Printer
Overview
64" Production Roll Printing with Integrated XY Slitter
The Mimaki JV330-160 is the 64" model in Mimaki's flagship 330 Series roll-to-roll line. Two staggered printheads totalling 6,400 nozzles drive speeds beyond 1,000 sq ft/hr at full width — sized for vehicle wraps, wide banners, and billboard work.
Waveform control lifts droplet placement accuracy dramatically over the previous generation, while an integrated XY slitter, three-roll media changer, and in-machine lighting cut the manual work around each job. The result is a production printer that keeps running with less operator attention.
Key Features
- Speeds to 1,076 sq ft/hr – 100 m²/h in 4-color mode for high-volume production
- Two staggered printheads – 6,400 nozzles total, with resolutions from 600 to 1,200 dpi
- 63.4" (1,610 mm) print area – Media up to 63.8" (1,620 mm) wide
- Integrated XY slitter – Trims output on both axes inline, removing a manual finishing step
- Three-roll media changer – Switch between loaded media without reloading the machine
- ID Cut function – Prints job data as a barcode for automatic continuous cutting on a CG-FXII Plus
- Expanded SS21 ink set – Up to nine color options including White, Orange, Light Cyan, Light Magenta, and Light Black
- 3M™ MCS™ Warranty eligible – Finished-graphic coverage when running SS21 or BS4 inks
- Eco-solvent or dye-sublimation – Configure the platform for sign and graphics work or for textile transfer
- Mimaki Remote Access – Monitor machine status from a smartphone or PC on the network
Expanded Ink Set
The SS21 eco-solvent set reaches well past CMYK. Light Cyan, Light Magenta, and Light Black smooth gradations and give real depth to grayscale and monochrome imaging. Orange widens the gamut for accurate solid Pantone and food-imagery reproduction. White enables printing on clear and dark media. BS4 remains available as a four-color option, and both ink sets qualify the machine for the 3M MCS Warranty — coverage on the finished graphic, not just the hardware.
Automation & Unattended Running
- MBIS3 bulk ink – Economical 2-liter packs mounted above the cartridge station to save floor space
- Uninterrupted Ink Supply System – Switches automatically to the next full pack when one empties
- V-shaped cut function – Faster, cleaner separation of finished output from the roll
- Mimaki Intelligent Heaters – Managed drying across the media path for reliable ink adhesion
- Mimaki Advanced Pass System – Blends swath boundaries to suppress banding on long runs
- In-machine lighting – Illuminated print area so operators can check output without stopping the job
JV330 Series Comparison
| Model | Class | Max Print Area | Max Media Width | Max Print Speed |
|---|---|---|---|---|
| JV330-130 | 54" | 53.5" (1,360 mm) | 53.9" (1,371 mm) | Up to 1,076 sq ft/hr |
| JV330-160 | 64" | 63.4" (1,610 mm) | 63.8" (1,620 mm) | Up to 1,076 sq ft/hr |
Applications
Ideal for durable indoor and outdoor banners, vehicle wraps and fleet graphics, retail and point-of-sale displays, posters and exhibition graphics, window film, wall coverings, and — in dye-sublimation configuration — textile and apparel transfer work.
Why Choose the Mimaki JV330-160?
The JV330-160 delivers Mimaki's flagship roll printing at full 64" width: 1,076 sq ft/hr, dual staggered heads, integrated XY slitting, and a three-roll media changer for near-continuous operation. For high-volume sign production where cutting happens on a separate device, it's the printer built to keep that device busy.
Specifications
| Specification | JV330-160 |
|---|---|
| Device Type | Roll-to-roll eco-solvent inkjet printer |
| Printhead | On-demand piezo, two staggered printheads (6,400 nozzles) |
| Print Resolutions | 600, 800, 900, and 1,200 dpi |
| Max Print Speed | Up to 1,076.4 sq ft/hr (100 m²/h), 4-color mode |
| Standard Mode Speed | Approx. 226 sq ft/hr (21 m²/h) 4-color; 142 sq ft/hr (13.2 m²/h) 8-color |
| Max Print Area | 63.4" (1,610 mm) |
| Max Media Width | 63.8" (1,620 mm) |
| Ink Type | Mimaki eco-solvent SS21 (up to 9 colors incl. White, Orange, Light Black); BS4 4-color; dye-sublimation configuration available |
| Ink Supply | MBIS3 bulk ink system with 2-liter packs; Uninterrupted Ink Supply System |
| Finishing | Integrated XY slitter; V-shaped cut function; ID Cut support with CG-FXII Plus |
| Media Handling | Multiple media roll handling unit (three-roll changer) |
| Core Technologies | Waveform Control, Variable Dot Technology, MAPS, Mimaki Intelligent Heaters, MBIS, UISS |
| Remote Operation | Mimaki Remote Access (MRA) via smartphone or PC |
| Warranty Program | 3M™ MCS™ Warranty eligible with SS21 or BS4 inks; Mimaki on-site parts and labor coverage |
| Included Software | RasterLink RIP |
