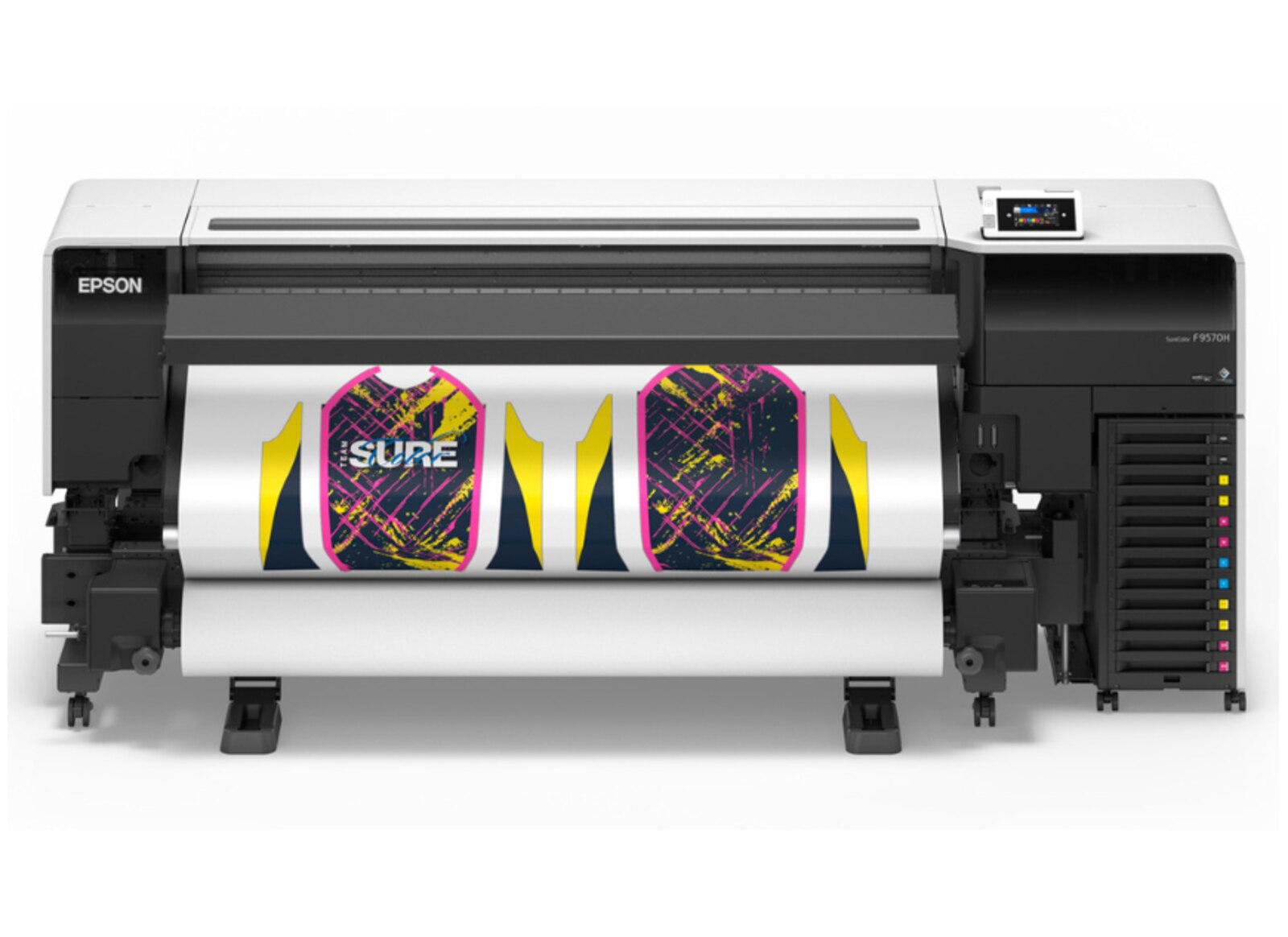

Epson SureColor F9570H 64" 6-Color Dye-Sublimation Printer

High-Speed 6-Color Dye-Sublimation for Apparel, Décor & Soft Signage

The Epson SureColor F9570H is a 64" dye-sublimation transfer printer built for shops running high volumes every day. It pairs a user-replaceable 2.6" PrecisionCore Micro TFP printhead with UltraChrome DS ink to deliver sellable-quality output at speeds up to 1,590 sq ft/hr.

What separates the F9570H from the standard F9570 is its six-color engine. Alongside CMYK, you choose one of three paired ink sets — Light Cyan and Light Magenta for smoother gradations, Fluorescent Pink and Fluorescent Yellow for high-visibility work, or Orange and Violet for an expanded gamut — matching the printer to the work you sell most.

Key Features

• Speeds to 1,590 sq ft/hr – Production throughput without giving up sellable print quality
• Three 6-color ink configurations – CMYK plus Light Cyan/Light Magenta, Fluorescent Pink/Yellow, or Orange/Violet
• User-replaceable printhead – 2.6" PrecisionCore Micro TFP that you can swap in-house rather than waiting on a service call
• Nozzle Verification Technology – Detects and compensates for irregular nozzles automatically to protect print quality
• UltraChrome DS ink – High-density black with strong color saturation and contrast across textiles and hard goods
• 1.6-liter hot-swappable ink packs – Change ink mid-run and keep production moving around the clock
• 4.3" color touchscreen – Straightforward operation and status checks at the machine
• Epson Edge Print included – Built on the Adobe PDF Print Engine, and compatible with major third-party RIPs
• Epson Cloud Solution PORT – Live fleet monitoring of printer status, production rates, and utilization
• Integrated take-up reel and drying fan – Supports unattended runs and heavy ink coverage without smearing

Three Ink Configurations, One Platform

The six-color ink set is what makes the F9570H flexible. Light Cyan and Light Magenta smooth mid-tones and highlights, which suits photographic work and hard substrates like photo panels. Fluorescent Pink and Fluorescent Yellow produce neon-bright output that stands out in sportswear, event apparel, and retail graphics. Orange and Violet widen the gamut through blues, purples, reds, and oranges for brand-accurate color matching. Note that the configuration is set at installation and is not user-changeable afterward, so it's worth matching to your core business.

Built for Round-the-Clock Production

• Hot-swappable ink pack system – 1.6-liter packs replaced without stopping the job
• Self-service printhead – Reduces downtime if the head eventually needs replacing
• Low-maintenance design – Fabric head wiper and an accessible maintenance area
• Fleet visibility – Cloud Solution PORT reports status and output across multiple machines
• Backed by Epson service – 1-year limited warranty, extendable to five years of continuous coverage

Applications

Ideal for sports apparel and activewear, fashion and cut-and-sew garments, soft signage and flags, home décor and textiles, promotional and personalized products, photo panels, and other polyester-based hard goods produced by heat transfer.

Why Choose the Epson SureColor F9570H?

The F9570H is the six-color version of Epson's production dye-sublimation platform, giving you a choice of ink pairing that the four-color F9570 can't match. For shops that need fluorescent pop, wider gamut, or smoother gradations — and need it at 1,590 sq ft/hr with minimal downtime — it's the more capable of the two.
