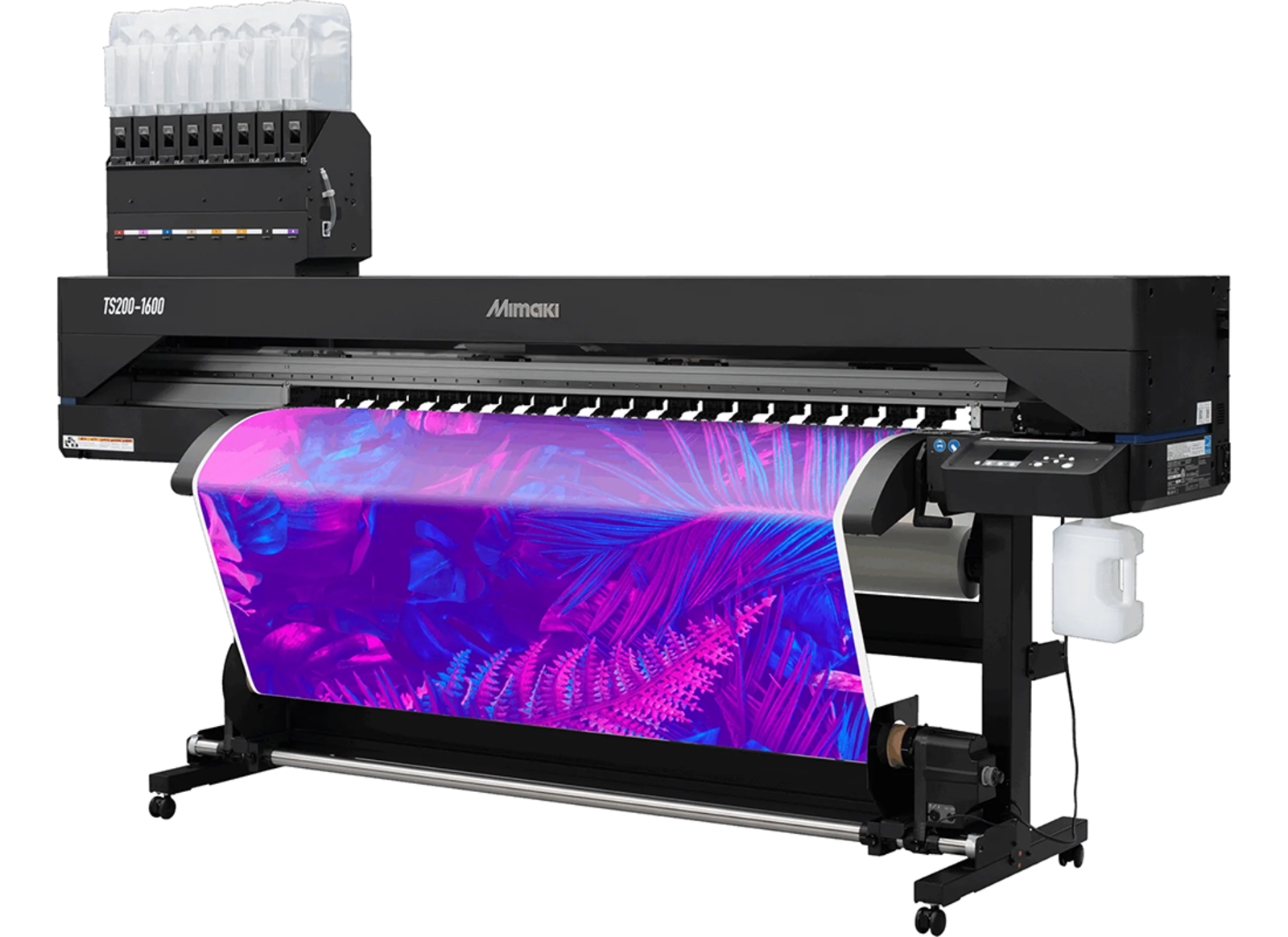

Mimaki TS200-1600 64" Sublimation Transfer Printer
Overview
High-Speed Sublimation for Apparel, Soft Signage & Décor
The Mimaki TS200-1600 is a next-generation 64" dye-sublimation transfer printer that pairs high-resolution imaging with production-focused ease of use. Built on Mimaki's proven 330-series engine with a single high-density printhead, it delivers vivid, saturated output for textiles, sportswear, soft signage, and interior décor.
Available in a dual-reservoir 4-color configuration or a full 8-color set — adding Orange, Violet, Fluorescent Pink, and Fluorescent Yellow — the TS200-1600 expands the color gamut by up to 22% while keeping ink costs and downtime low. Remote monitoring, intuitive software, and a maintenance-friendly design make it a natural fit for high-volume shops.
Key Features
- 64" sublimation transfer printing – Up to 63.3" print width for wide-format textile and transfer work
- 4- or 8-color ink configurations – Run a dual-reservoir CMYK set, or add Orange, Violet, Fluorescent Pink, and Fluorescent Yellow
- 22% wider color gamut – New Violet and Orange inks plus fluorescents deliver high-impact, hard-to-reproduce colors
- Production speeds to 753.5 sqft/hr – High throughput without sacrificing image quality or saturation
- 4pl minimum drop size – Fine detail and smooth gradations alongside solid, high-density color coverage
- PICT cloud monitoring – Track operating status, production metrics, and ink consumption from computer, smartphone, or tablet
- Mimaki Remote Access (MRA) – Real-time operation and status checks over a local Wi-Fi connection
- In-RIP ink savings – Reduce ink use by up to 50% depending on the selected level
- 2-liter eco ink packs – Low-waste, high-capacity supply for long, unattended runs
Expanded Color & Ink Flexibility
The TS200-1600's Sb411 dye-sublimation inks are available in a dual-reservoir 4-color (Blue, Magenta, Yellow, Black) setup for maximum uptime, or a full 8-color set that adds Violet, Orange, Fluorescent Pink, and Fluorescent Yellow. The result is a color gamut up to 22% larger — ideal for brand-accurate apparel, vibrant sportswear, and eye-catching fluorescent accents. All inks ship in low-waste 2-liter eco packs.
Productivity & Smart Operation
- PICT cloud insights – Remote reporting of device status, throughput, and ink consumption across your fleet
- Mimaki Remote Access (MRA) – Operate and check the printer from anywhere on the local network
- Automatic maintenance – Automatic nozzle replacement plus sensor-based dot-position and feed adjustment for hands-off media setup
- In-RIP ink saving – Cut ink costs by up to 50% depending on the level selected
- Energy-efficient design – Draws 250W or less, with Energy Star certification
Applications
Ideal for sportswear and activewear, fashion and apparel, soft signage and flags, home textiles, cushions and pillows, tote bags, socks and leggings, and interior décor — anywhere vivid, durable dye-sublimation transfer output is needed.
Why Choose the Mimaki TS200-1600?
The TS200-1600 brings Mimaki's flagship 330-series imaging to an accessible, single-printhead platform — combining an expanded color gamut, fast production speeds, low ink costs, and cloud-connected monitoring in one 64" sublimation transfer printer built for high-volume, production-focused shops.
Specifications
| Specification | TS200-1600 |
|---|---|
| Printhead | Single on-demand piezo printhead |
| Print Resolution | 300 / 600 / 900 dpi (Y) × 600 dpi (X) |
| Max Print Speed (4-color) | 753.5 sqft/hr (70 sqm/hr) |
| Ink Type | Sb411 dye-sublimation |
| Ink Colors | 4-color (Blue, Magenta, Yellow, Black) or 8-color (adds Violet, Orange, Fluorescent Pink, Fluorescent Yellow) |
| Ink Package | 2-liter eco ink pack |
| Max Print Width | 63.3" (1,610 mm) |
| Max Media Width | 63.7" (1,620 mm) |
| Max Media Thickness | 0.039" (1.0 mm) |
| Roll Weight | Up to 55.1 lb (25 kg); 99.2 lb (45 kg) with foot leveling kit (Opt-J0502) |
| Interface | Ethernet 1000BASE-T (recommended), USB 2.0 Hi-Speed |
| Power Supply | AC 100–120V / 200–240V ±10%, 3A, 50/60Hz |
| Power Consumption | 250W or less |
| Operating Environment | 68–86°F (20–30°C), 35–65% humidity |
| Dimensions (W × D × H) | 109" × 29.4" × 63.8" (2,770 × 748 × 1,623 mm) |
| Weight (uncrated) | 341.7 lb (155 kg) |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking, CB, Energy Star, RCM, KC, UKCA |
| Warranty | 1-year Mimaki Total Care + 2-year Mimaki Parts Plus+ |
