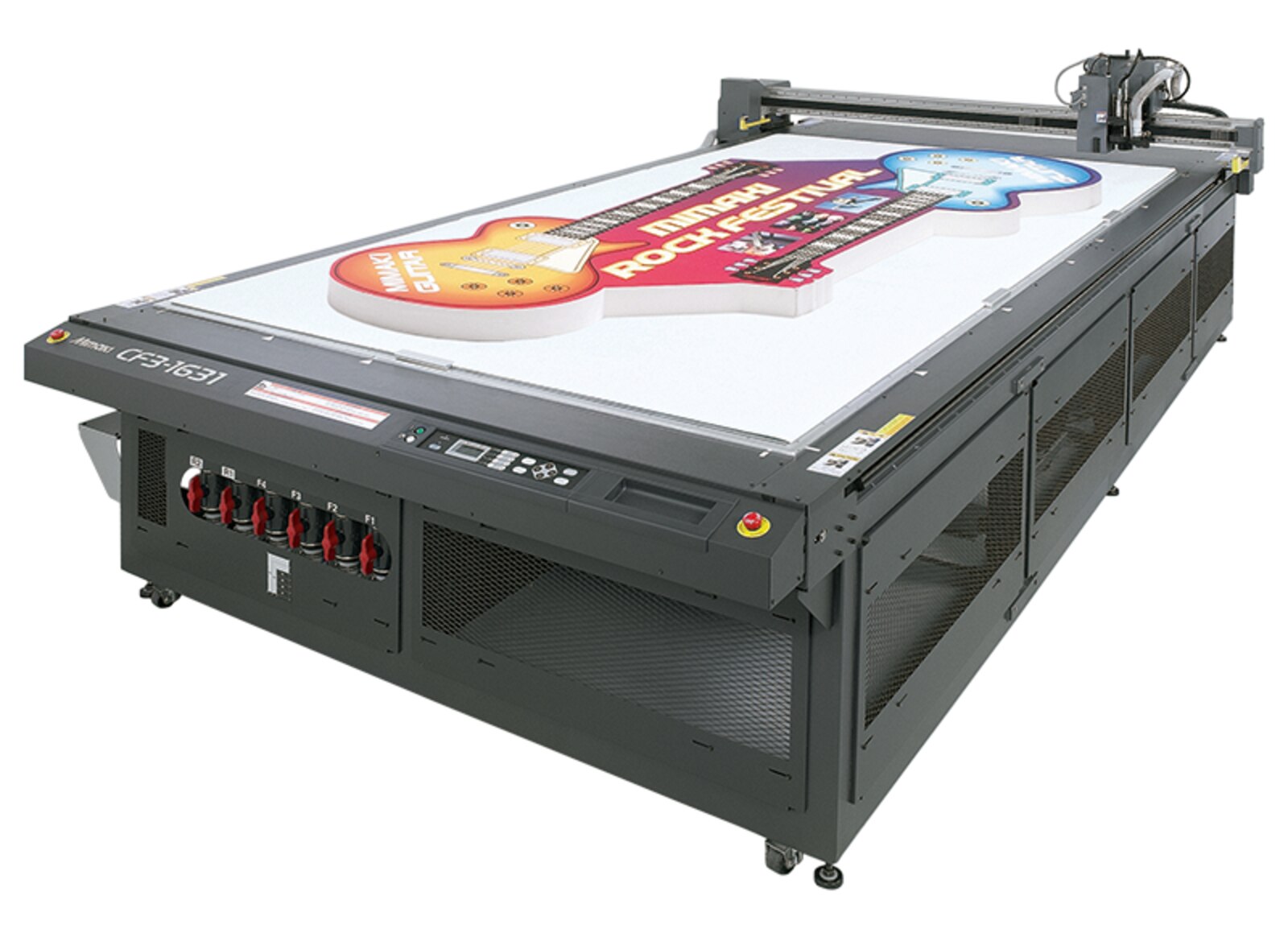

Mimaki CFX Series Flatbed Cutters

High-Speed Flatbed Cutting, Creasing & Routing to 1,000 mm/s

The Mimaki CFX Series is Mimaki's fastest and most productive line of flatbed cutting plotters, with routing support built in. Class-leading carriage movement of 1,000 mm/s delivers production throughput without giving up accuracy on intricate work.

Four tools mount simultaneously, so a job can cut, crease, and route in a single setup with no operator intervention between steps. With 66 lbs of cutting pressure and clearance for material up to 2.3" thick, the CFX handles everything from thin label stock to heavy corrugate, foam board, and acrylic.

Key Features

• Movement speed to 1,000 mm/s – Class-leading carriage speed for genuine production throughput
• Four simultaneous tools – Cut, crease, route, and score in one setup with no tool changes mid-job
• 66 lbs (30 kg) cutting pressure – Drives through dense and heavy substrates cleanly
• Material up to 2.3" (54 mm) thick – Handles thick foam, corrugate, and composite panels
• Routing support – Mill and profile rigid materials that a drag knife can't cut
• Camera-guided backside mode – Cut and crease accurately from the reverse side of printed material
• Three table sizes – 2.5 x 1.3 m, 2.5 x 3.1 m, and 2.5 x 5.0 m to match your production scale
• Vacuum hold-down – Keeps sheet material flat and registered through high-speed movement
• Creasing capability – Produce clean fold lines for packaging prototypes and display construction

One Machine, Four Tools

The four-tool carriage is what makes the CFX a production machine rather than a sample cutter. A packaging prototype typically needs a through cut for the outline, a crease for every fold, a kiss cut for labels, and sometimes a routed window — four operations that on a lesser machine mean four setups and four chances to lose registration. The CFX does all of it in one pass, from one file, with the material never moving. For a packaging or display shop, that is the difference between prototyping being a service you offer and a bottleneck you dread.

Precision & Material Handling

• Camera registration – Reads printed marks to align cuts precisely with graphics, including from the backside
• High-pressure tooling – 30 kg of downforce for consistent cutting through dense board and composites
• Vacuum table zones – Hold full sheets or smaller pieces without masking unused table area
• Routing spindle support – Profile acrylic, PVC, and composite panels beyond drag-knife capability
• Repeatable registration – Consistent placement across batch runs and repeat jobs
• Large-format capacity – Table sizes up to 2.5 x 5.0 m for oversized sheets and long runs

CFX Series Models

Applications

Ideal for packaging prototypes and short-run production, corrugated displays and POP, foam board and rigid signage, acrylic and PVC profiling, gasket and industrial part cutting, sample making and structural design, vehicle graphics templates, and decorative panels.

Why Choose the Mimaki CFX Series?

The CFX Series is built for shops where cutting is the constraint rather than an afterthought. At 1,000 mm/s with four tools live and 2.3" material clearance, it converts what were multi-step manual operations into a single automated pass — and with three table sizes, the platform scales from prototype work to full production.

Specifications

Specification	CFX Series
Device Type	High-speed flatbed cutting plotter with routing support
Available Models	CFX-2513, CFX-2531, CFX-2550
Max Movement Speed	1,000 mm/s
Tool Capacity	Four tools mounted simultaneously
Max Cutting Pressure	66 lbs (30 kg)
Max Material Thickness	2.3" (54 mm)
Cutting Width	100" (2,540 mm) across all models
Table Lengths	51" / 122" / 197" (1,300 / 3,100 / 5,000 mm)
Registration	Camera-guided, including backside cutting and creasing mode
Operations	Through cut, kiss cut, crease, score, and route
Media Hold-Down	Vacuum table
